Portfolio

Each project shows the print, the model, and the decisions in between. Where a drawing didn't say something, the write-up says what I assumed and why.

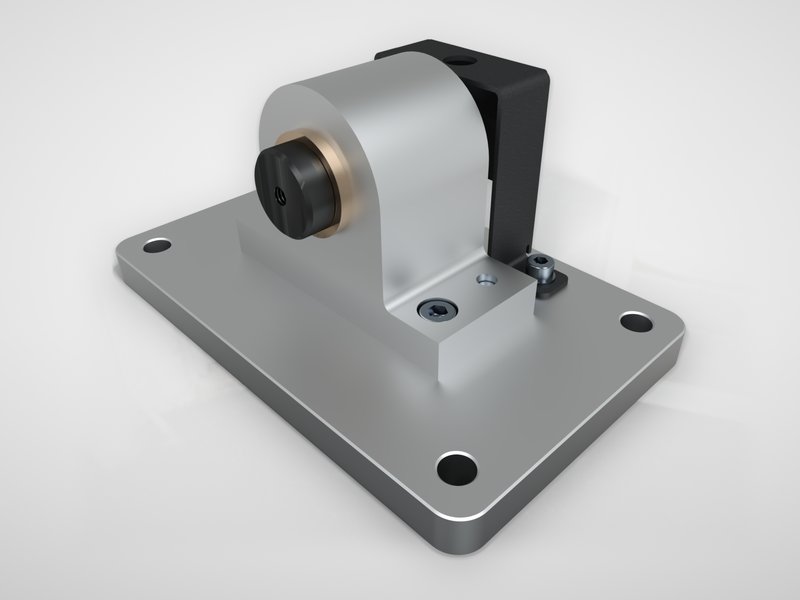

Shaft support assembly, modeled in Onshape from a 2D drawing package (practice project).

Shaft Support Assembly (5 parts + standard hardware)

Practice project, original drawing package

A five-part shaft support built from a six-sheet drawing package: machined base plate and bearing bracket, a turned shaft with a retaining-ring groove, an inch-dimensioned bronze bushing, and a sheet metal guard. I caught a fit conflict between the bushing drawing and the assembly notes before modeling it.

OnshapeAssemblyISO fitsSheet metalStandard contentRender Studio

Read the case study

More projects on the way

Original designs and printed parts with measured-vs-nominal checks will be added here as they're finished.

Practice and personal projects are labeled as such. Client work is only shown with the client's written permission.
